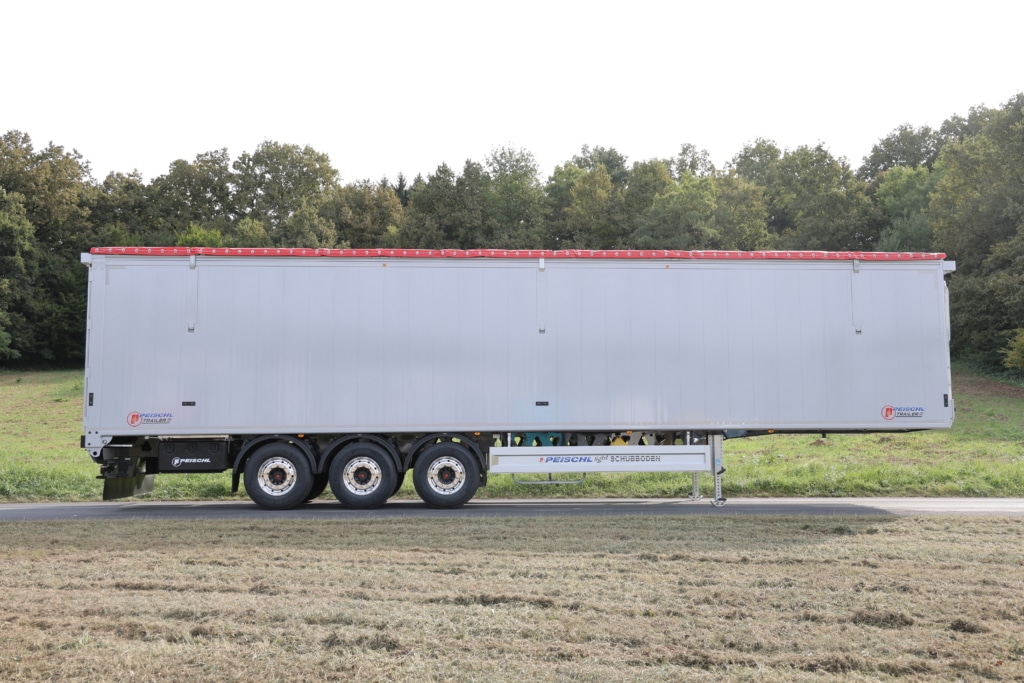

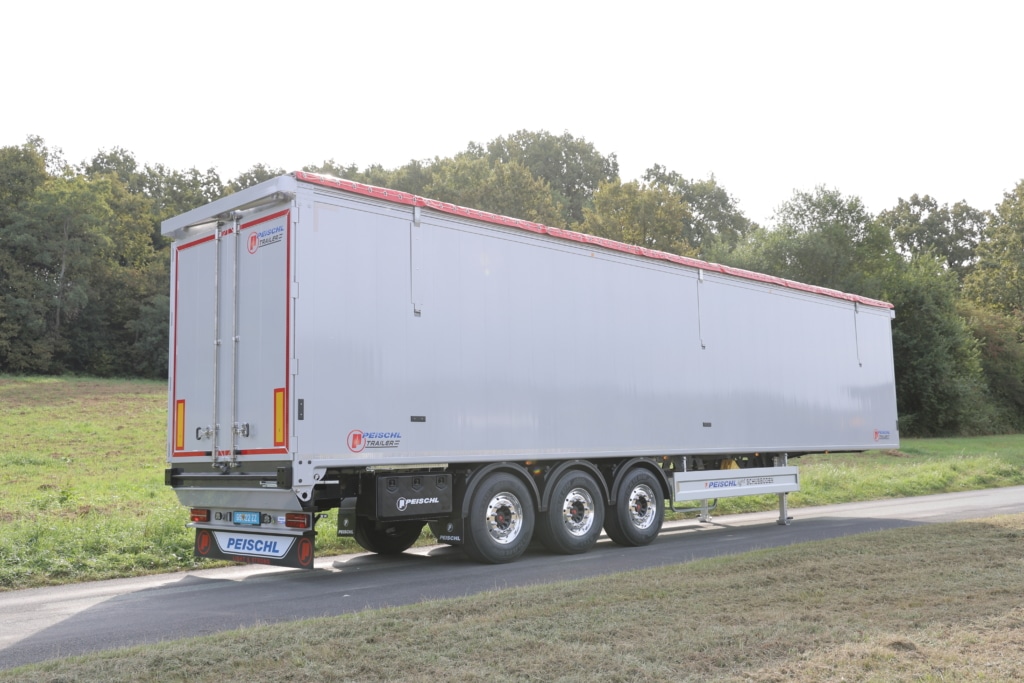

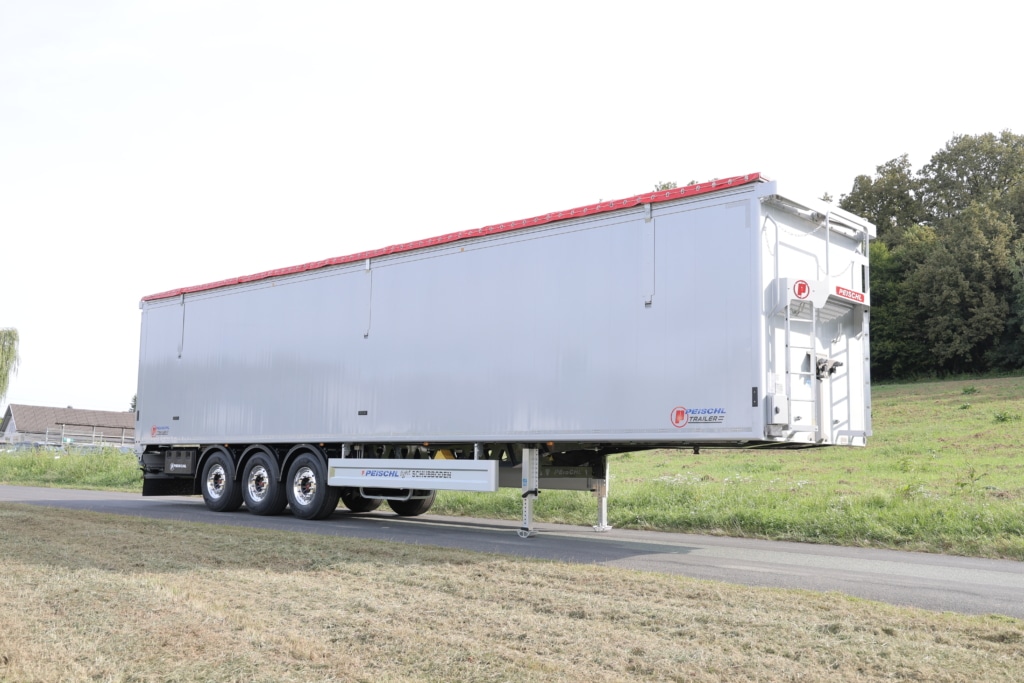

Moving floor with patented hydraulic roof system
7.590 kg
reliable
practical
comfortable This sliding floor with a hydraulic roof system enables the quick and safe loading, unloading and transhipment of bulk goods. It is ideal for applications where efficiency, safety and time savings are crucial in day-to-day operations.
Technical specifications
The roof system opens and closes at the touch of a button via a radio remote control or control unit. No manual operation or climbing required.
The bolted connection between the body and chassis, together with the special plain bearing system, ensures stability and a long service life. The high-quality premium paint finish provides lasting protection against corrosion.
- Fifth-wheel height
- 1,150 mm
- Total height
- 4,000 mm
- Conical
- 140 mm
- Inseam
- 13,520 mm
- Internal height of side panel (front)
- 2,653 mm
- Internal height of side panel (rear)
- 2,793 mm
- Volume
- 4,000 mm
- Volume (excluding VAT)
- 91.50 m³
- Net weight
- 7,590 kg
Original patented hydraulic roof system
PEISCHL’s patented hydraulic roof system opens and closes entirely at the touch of a button. It can be controlled either via a wireless remote control or via the control unit fitted directly to the vehicle.
No need to climb up, pull or secure by hand. Significantly reduced downtime. The roof slides down along the edge of the vehicle and requires only 1.25 m of opening height. This means it can be opened right next to walls, as well as entering halls up to 5.3 m high.
The design allows for bulk cargo overhang of up to 950 mm. This results in maximum volume utilisation and a higher payload per journey.
Lightweight construction that generates a measurable profit every year
A PEISCHL reduces the vehicle’s kerb weight, thereby permanently lowering fuel consumption. Every tonne saved translates to around 1 litre less diesel per 100 kilometres. With an annual mileage of 180,000 kilometres, this adds up to 1,800 litres less fuel consumption per year. Technical efficiency thus translates into a clearly measurable economic benefit.
- €2,880 less in fuel costs per year at a diesel price of €1.60
- €23,040 in savings over eight years per tonne of weight reduction
- Greater permissible payload per journey and thus higher returns over the same distance
Revolutionary chassis design
The PEISCHL system, featuring an extremely robust structure and a continuous steel chassis, is designed to withstand the highest levels of continuous stress in demanding transport applications. Rather than a self-supporting design, it offers maximum stability, a long service life and reliable performance when handling waste, recycled materials, timber and bulk goods.
- Extremely robust outer frame and roof strap construction for aggressive continuous operation.
- Light and Strong chassis construction made from high-strength S700MC steel for maximum payload with the highest stability.
- Unique bolted connection between the body and chassis for optimal force distribution and a structurally stable construction.
Innovative bodywork design
The body is designed as a solid trough-type structure for universal and heavy-duty use. Reinforced side walls, a sturdy end wall construction made from hollow sections, and extremely robust corner posts ensure high durability, even when handling heavy and abrasive materials. Specially developed aluminium profiles enable a weight-optimised design whilst maintaining high structural stability.
- Extremely robust body and sidewall construction for refuse, recycling, timber and bulk goods.
- Reinforced end wall and solid corner posts for maximum load-bearing capacity in continuous operation.
- Specially developed aluminium profiles for an optimal combination of stability and low weight.
New rear portal
The newly developed rear portal is designed to withstand extreme loads and ensure a smooth unloading process. Its robust construction and well-thought-out details ensure reliability in demanding, continuous use.
- Specially developed aluminium profiles using PEISCHL profile technology, together with reinforced corner posts, ensure maximum stability and load-bearing capacity.
- A solid double-jointed hinge allows for unobstructed through-loading without any hindrance during unloading.
- Newly designed rear door seals and external stainless steel turnbuckles with special fasteners ensure long-lasting performance even under harsh operating conditions.
The differences at a glance
The reduced kerb weight is not achieved by cutting back on materials or compromising on quality, but through the targeted use of high-strength steels such as S700MC and a comprehensively optimised chassis design. This saves weight without compromising on stability and durability.
The result is a design that combines high stability with low kerb weight. This means you benefit from reduced fuel consumption and a higher payload per journey in day-to-day use.
In the long term, this leads to measurable cost savings, greater transport efficiency and improved economic performance throughout the vehicle’s entire service life.
manufacturers
; not a self-supporting design
Higher payload More profit per journey
40mm-thick rear doors Stainless steel twist locks
Video of a moving floor with a hydraulic roof system
The video shows the PEISCHL sliding floor with its patented hydraulic roof system in action. It demonstrates opening and closing at the touch of a button, convenient operation without having to climb up, and efficient loading and unloading. This clearly shows how the hydraulic roof saves time, improves safety at work and simplifies day-to-day transport operations.
