3-axle jumbo flatbed trailer

Enquire now

3-axle jumbo flatbed trailer

Variable kg

light
flexible
accessible

The 3-axle Jumbo flatbed trailer offers maximum load capacity and a high payload for continuous agricultural use. Designed specifically for transporting straw bales, its extendable, robust construction ensures great flexibility in day-to-day use.

Enquire now

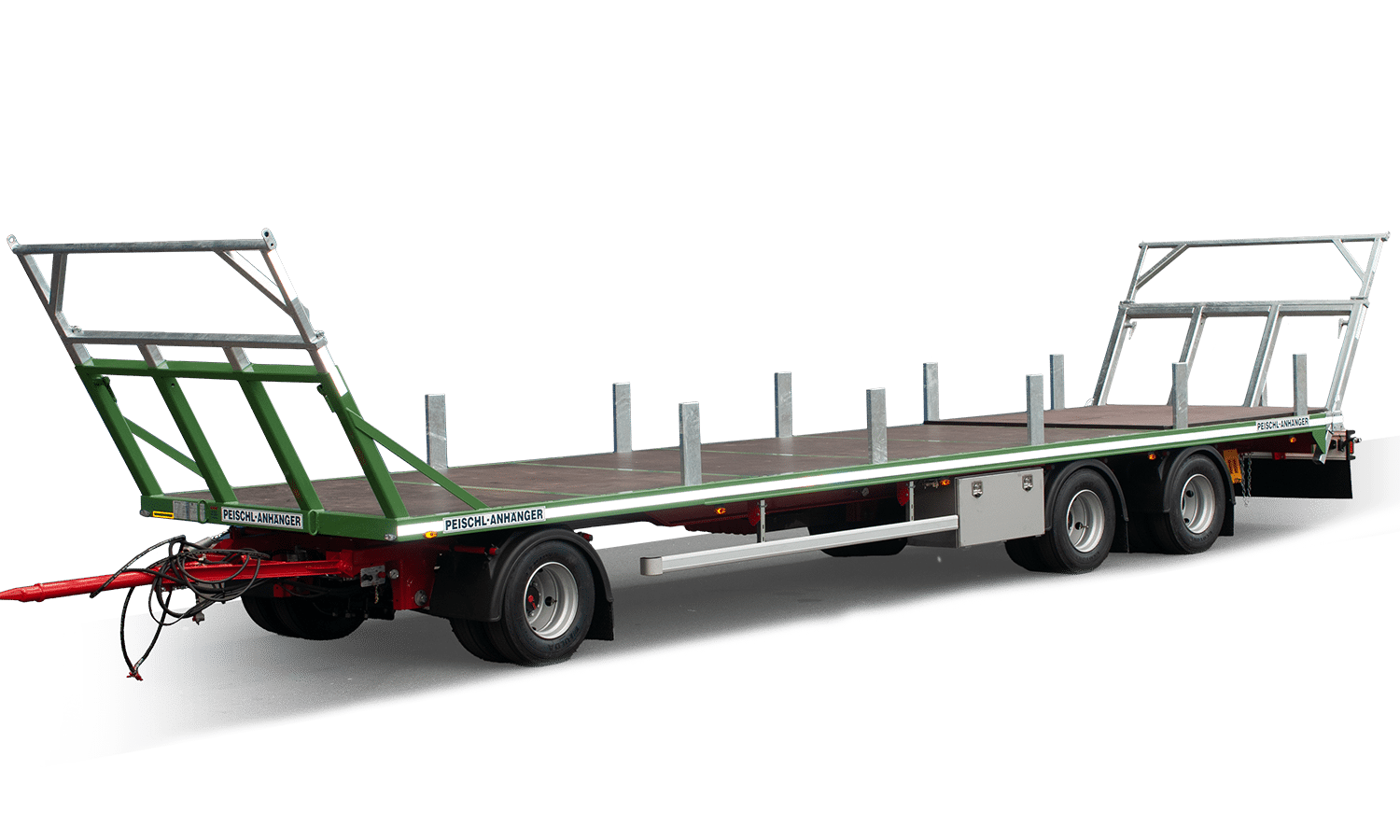

3-axle jumbo plateau trailer

Technical specifications

Component Description
Weights
  • Permissible total weight 23,200 kg.
  • Technical gross weight 24 t, technical 27 t.
  • Axle loads 8,900 / 8,900 / 8,900 kg.
  • Unladen weight 6,110 kg.
  • Payload 17,090 kg.
  • Wheelbase 5,500 + 1,480 mm.
Dimensions
  • Internal length approx. 10,000 mm.
  • Internal width approx. 2,550 mm.
  • Overall length approx. 12,000 mm, extendable to max. 15,400 mm.
Chassis
  • Welded construction made from high-quality steel sections.
  • Torsion-resistant main frame.
  • Large, smooth-running ball-joint steering ring.
  • Height-adjustable drawbar.
Axles
  • 3 SAF hollow axles, each with a load capacity of 9 t.
  • S cam brake 300 x 200.
  • 17.5 inches.
Braking system
  • 40 km/h air brake system.
  • Spring-loaded parking brake.
  • 12 volts.
Suspension
  • Air suspension with lift and lower mechanism.
Wheels
  • 235/75 R17.5 on steel rims.
Body
  • Low-profile design with 27 mm screen-printed floor.
  • 10 pairs of lashing eyes.
  • Extendable drawbar.
  • 4 stanchions on each side, 500 mm high.
  • Fixed and reinforced bale support at the front.
  • Split rear support, upper section folds inwards.
  • Rear section hydraulically extendable by approx. 1.7 m.
  • Additional 1 m extension of the shaped tube.
  • 6 pairs of roller assemblies beneath the platform.
Safety and details
  • Underrun protection and side impact protection.
  • 4 PVC mudguards per wheel.
  • 2 wheel chocks.
  • Lighting fully compliant with STVO.
Paintwork
  • Certified paintwork in accordance with DIN 50017KK.
  • Technology and Innovation Ltd.
  • Austrian Research Institute for Chemistry and Technology.
  • In accordance with DIN 50017KK, condensation test climate on the test bench.
  • Passed 750-hour salt spray test with distinction.
Disclaimer All information is provided without guarantee and is subject to technical changes and typographical errors.
